LED Strip Lighting Installation: From Plan to Plug

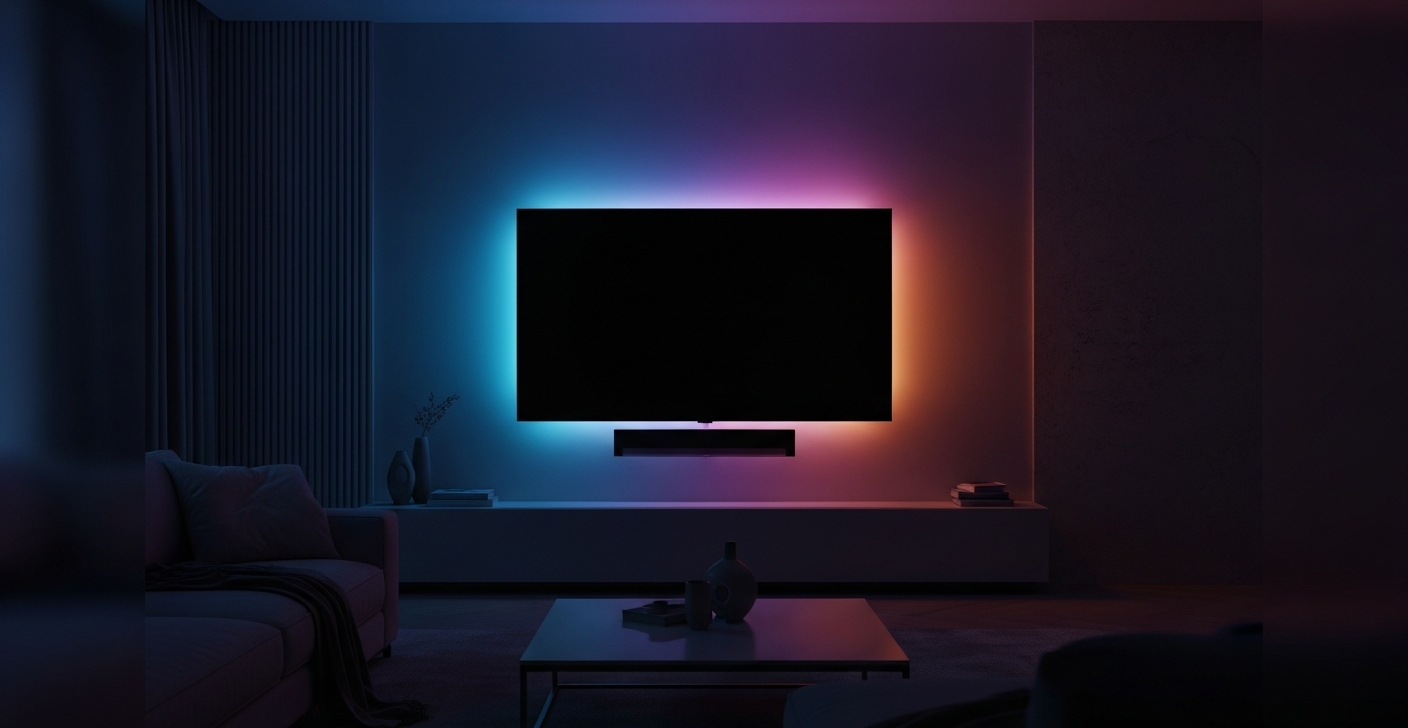

LED strip behind a TV: easy in influencer videos, less obvious in your living room. The plan is what makes the difference.

LED strip lighting is the most common DIY lighting upgrade in modern homes. The marketing makes it look effortless: peel the backing, stick the strip, plug it in. The reality is more involved. Wrong strip type for the application, miscalculated power supply, missing controller, sloppy corner cuts. These are the four mistakes that send LED strips to the trash drawer within a month. The good news: each one is preventable with about 15 minutes of planning before you buy anything.

This guide walks through full LED strip lighting installation from the planning stage to the final plug-in. By the end you'll know which strip type fits which application, how to size your power supply, and the specific wiring tricks that prevent the most common failures. The aim is a setup that looks intentional and lasts years, not one that ends up in a junk drawer.

Step 1: Decide What You're Actually Lighting

Before buying any LED strip, identify the specific job. The application drives everything else: strip type, brightness, color, and length. Three common applications and what each one needs:

Picking the wrong strip type for the application is the most common mistake. A bright 5050 RGB strip mounted under kitchen cabinets is too colorful and not bright enough for cooking task light. A dim 2835 warm white strip mounted behind a TV looks dull. Match strip to application first.

Step 2: Measure Twice, Buy Once

LED strips are sold in fixed lengths (usually 5-meter rolls). The temptation is to buy more than you need, but excess strip becomes wasted material since you can't easily return cut sections. Three measuring rules:

• Add 10% to your linear measurement. If you measure 4.2 meters of run length, buy 4.6 meters. Corner cuts and trim adjustments eat the difference.
• Round up to the nearest cut point. LED strips have specific cut marks every 2.5-10 cm depending on strip type. Don't plan to cut between cut points; the strip won't work.
• Plan corners with cuttable strips. Most strips can't bend around tight corners. Plan to cut at the corner and use a corner connector to bridge two strip segments.

For complex installations (around cabinets, behind multiple furniture pieces), draw out the layout on paper before measuring. Mark where each strip starts and ends. Identify where corner connectors will go. The 10 minutes spent planning prevents 30 minutes of returning to the hardware store.

Step 3: Size Your Power Supply Correctly

This is where most DIY LED strip installations fail. The power supply that came in the kit is usually undersized for anything beyond a 1-2 meter run. Calculate the actual draw:

Worked example: a 5-meter run of 14.4W/meter strip needs 5 × 14.4 = 72W of power. With the 25% buffer, you need a 90W supply. The 60W brick that came in the kit will overheat and shut down, then come back on, then shut down again. Buyers commonly think the strip is broken when really the supply was undersized.

Quality power supplies from MEAN WELL or similar brands cost $20-40 for a properly sized unit and run cool for years. The $10 unit that came in the strip kit is the source of most strip failures.

Step 4: Mount the Strip Properly

The adhesive backing on most LED strips is decent but not great. For permanent installations, supplement the adhesive with a few clips or aluminum channel. Three mounting methods, ordered from quickest to most permanent:

Adhesive only. Peel the backing, press firmly against a clean surface for 30 seconds. Works for short runs (under 2 meters) on smooth surfaces. Fails on textured surfaces or in humid environments.

Adhesive plus clips. Stick the strip down, then add small plastic clips every 30-50 cm. Clips screw or staple into wood. Adds 20 minutes to install time but prevents the most common failure (strip peeling off after 6 months).

Aluminum channel mounting. The professional choice. Aluminum channel screws to the surface, the strip clips inside the channel, a frosted plastic diffuser snaps over the top. The strip looks like an architectural feature rather than a stuck-on strip. Cost: $8-15 per meter of channel from Amazon or specialty lighting suppliers.

Under-cabinet LED strip in aluminum channel: clean, focused, and durable.

Step 5: Wiring and Controller Setup

The wiring step is where most DIY installations go from "looks good" to "works reliably." A few specific techniques:

Solder, don't crimp. Crimped connections work for the first month and then loosen, causing flicker. A 30-watt soldering iron, some solder, and 10 minutes of practice eliminate this entirely. If you don't want to solder, use real wire-to-wire connectors (not cheap pluggable ones) and wrap with electrical tape.

Run a "feeder line" for long strips. LED strips lose voltage along their length. A 10-meter run powered from one end will be visibly dimmer at the far end than the near end. The fix: run a parallel pair of wires (the "feeder line") and tap into the strip at both ends or at the midpoint. The feeder is invisible behind the strip and prevents the dimming gradient.

Add a controller, not just a power supply. A power supply turns the strip on at full brightness with one color. A controller adds dimming, color changing, and remote/app control. Even basic controllers from Govee or generic Amazon brands work fine; the upgrade from "always on full" to "dimmable" is what makes the strip pleasant to live with.

Step 6: Test Before Final Mount

The single most overlooked step. After cutting and connecting all your strip segments, plug everything in and test it on the floor before sticking anything to a wall or cabinet. Five minutes of testing finds:

• Reversed polarity on any segment (strip won't light)
• Loose corner connector (flicker on one section)
• Power supply undersized (dim at the far end or shutdown)
• Controller not communicating with strip (color or brightness commands don't work)

If anything fails the floor test, fix it before mounting. Fixing a wiring issue after the strip is glued and clipped to the underside of a cabinet is significantly harder than fixing it on the floor.

Common LED Strip Mistakes (and How to Avoid Them)

How LED Strips Work With Resin Lamps and Other Decor

LED strip lighting handles the architectural layer (under cabinets, behind furniture, edge of stairs). Resin lamps and other accent pieces handle the decorative layer (eye-level table tops, console pieces, statement glow). The two work together rather than competing.

A common combined setup: warm LED strip behind a media console for ambient glow, plus a handcrafted resin piece on the console as the accent. The strip sets the mood; the resin piece is the visual focal point.

Sunflower Glow Resin Lamp · From $89.95,

For more on combining different lighting layers, our guides on living room lighting ideas and bedroom lighting layout cover the principles in detail.

Golden Daisy Blossom Resin Lamp · From $124.95

Handcrafted resin lamp · From $59

Cost Breakdown for Common LED Strip Projects

Realistic budgets for the most common DIY LED strip installations:

Quality costs more upfront but rarely needs replacement. Cheap LED strips fail within 12-18 months in average use; quality strips run 5+ years without noticeable degradation.
